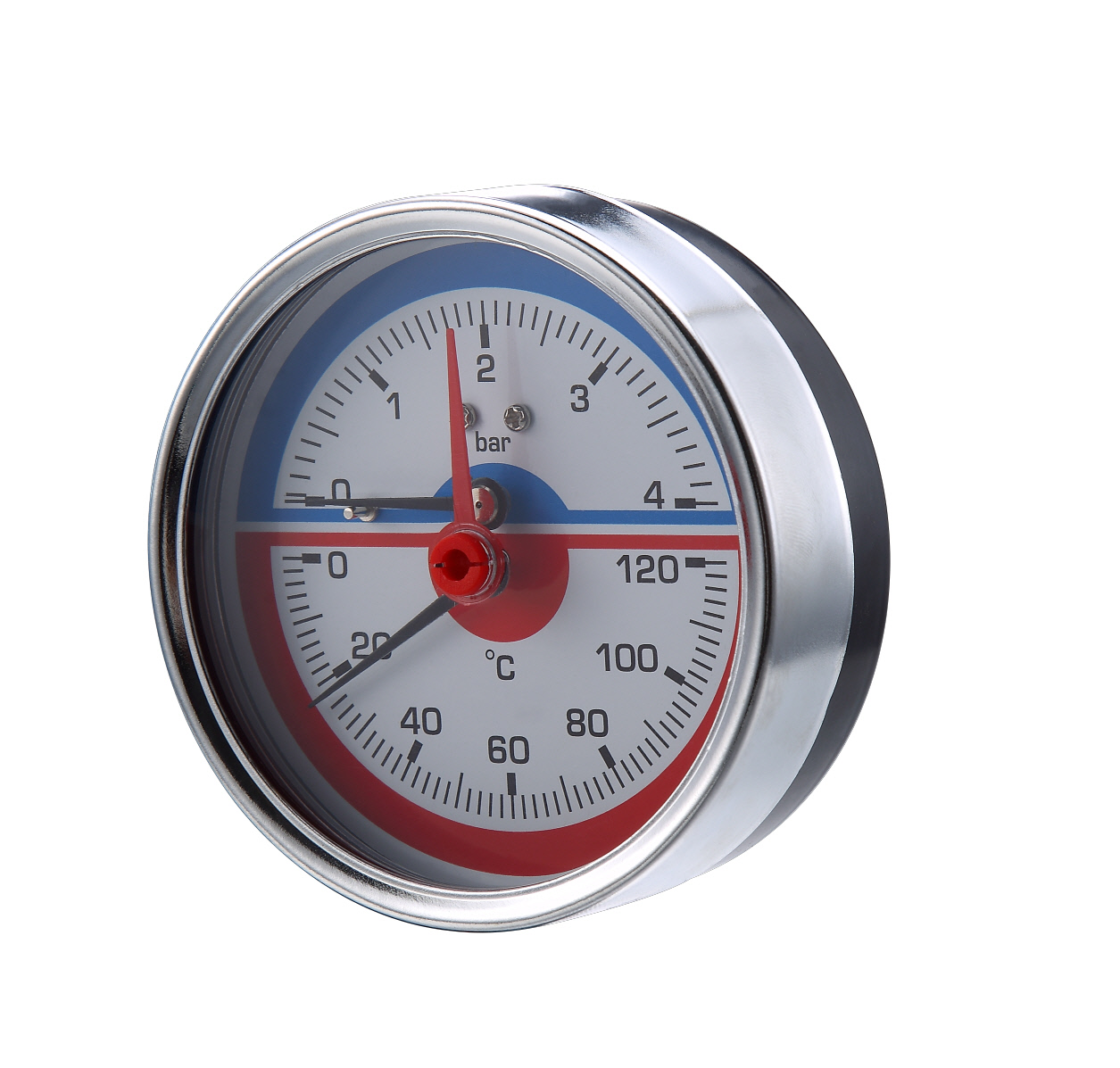

Case

80mm, Black Steel and chrome bezel

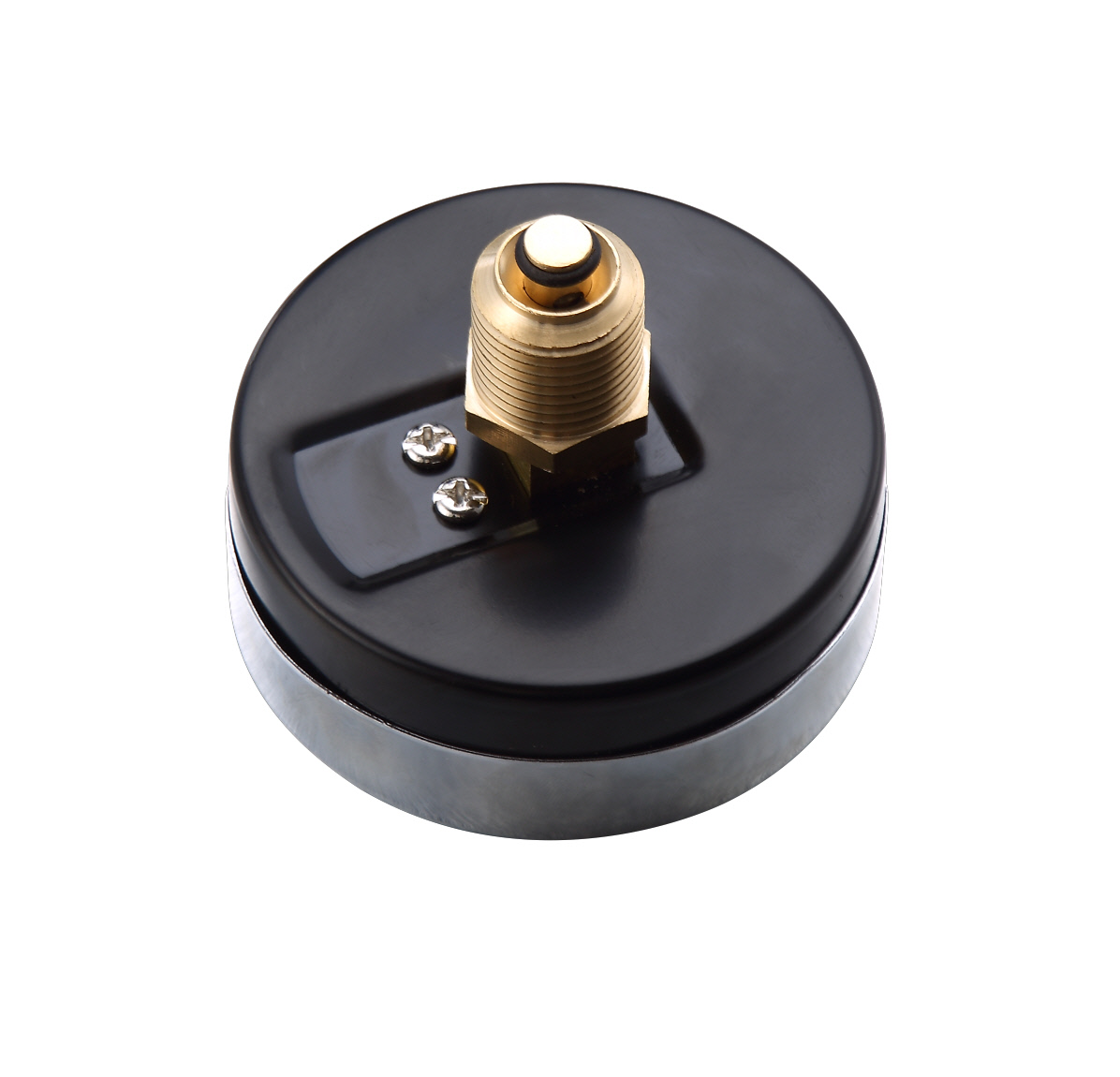

Connection

Back Entry

Window

Clear Plastic, snap fit

Pointer

Black aluminium with loose red pointer

Filling

Dry

Working Pressure

Steady,75% full scale range

Fluctuating

60% full scale range

Short Time

full scale range

Operating Temperature

Ambient:-20 to +60°C

Medium

-20 to +60°C

Storage Temperature

-40 to +60°C

Temperature Effect

When temperature of the pressure element deviates from reference temperature of 20°C the maximum additional error is +/- 0.4% per 10°C of the span rising and falling.

Sensor Mechanism

Bimetal coil, copper alloy bourdon
