- You Are Here - Products - Capsule pressure gauge

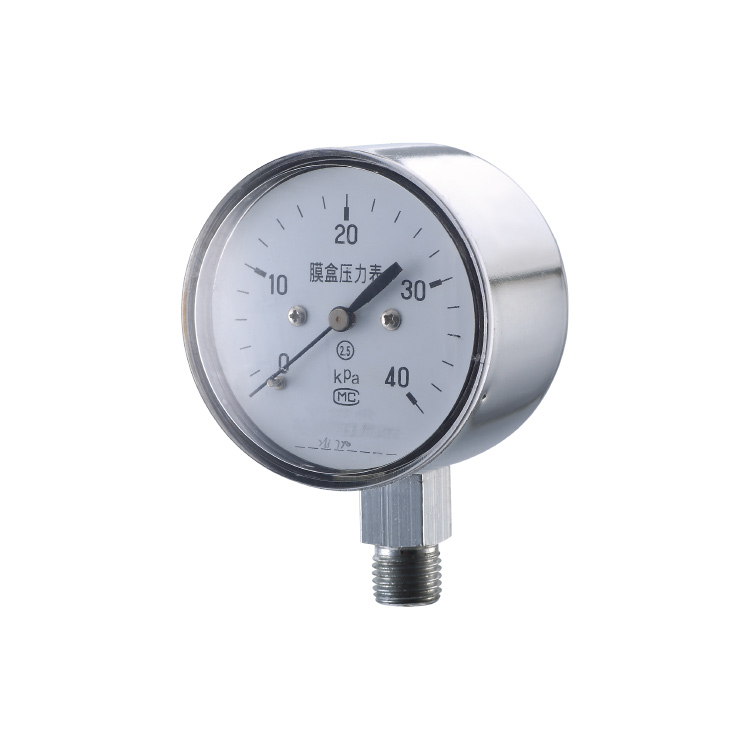

ZX-109
This capsule gauge is used to measure micro pressure and negative pressure of gas that has no corrosion to copper alloy.
Diameter: 60mm, 80mm, 150mm etc
Accuracy: 1.6, 2.5
Range: 0~60kpa
Kpa, mmH20, mbar as request
Connector Material: Stainless steel, Phosphorus bronze
Capsule Material: Phosphorus Bronze, Beryllium copper, 316L
Window: Glass/Safety Glass/PC etc
Connection Thread: G/PT/NPT 1/8 1/4 1/2, M10*1, M14*1.5, M20*1.5 etc
Diameter: 60mm, 80mm, 150mm etc
Accuracy: 1.6, 2.5
Range: 0~60kpa
Kpa, mmH20, mbar as request
Connector Material: Stainless steel, Phosphorus bronze
Capsule Material: Phosphorus Bronze, Beryllium copper, 316L
Window: Glass/Safety Glass/PC etc
Connection Thread: G/PT/NPT 1/8 1/4 1/2, M10*1, M14*1.5, M20*1.5 etc
